INCA Case Study: Waterlooville Health Centre




Waterlooville Health Centre


Project Type: Refurbishment

Building Type: Low Rise, Non-Residential

Architect: Studio Four Architects

System Designer: Structherm Ltd

Installer: Wall Coatings Ltd

System & Finish: STRUC-BRICK REND M with Artbrick

U-Value Before: 1.67W/m²K

U-Value After: 0.25W/m²K

Background to the project

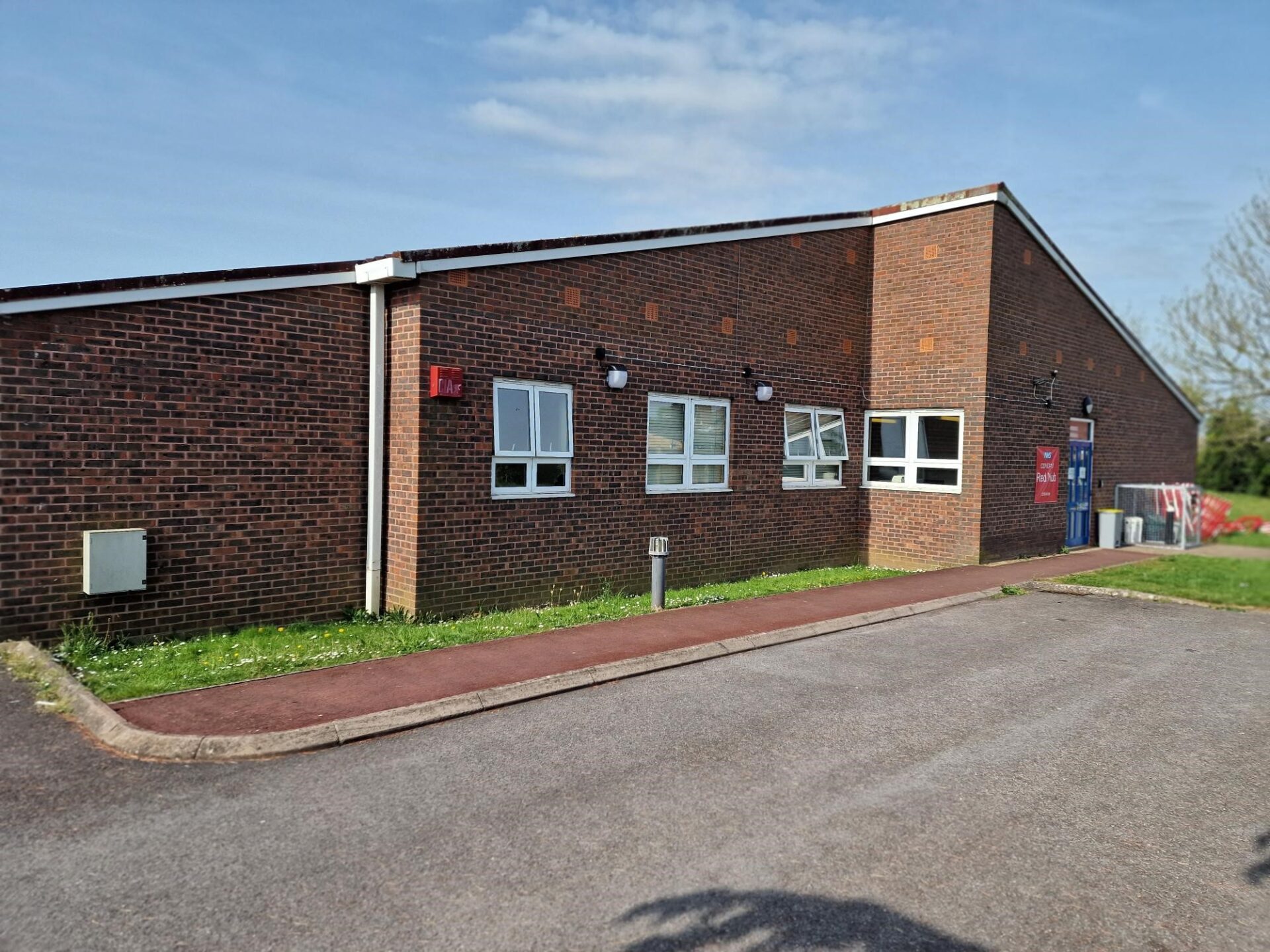

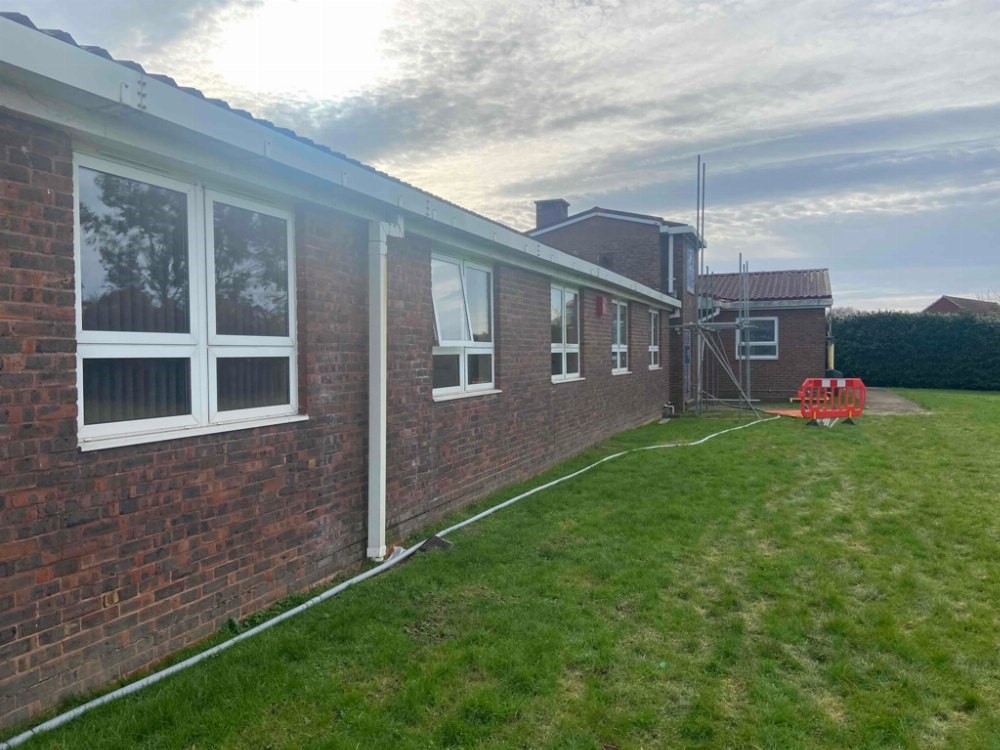

Waterlooville Health Centre was built in the 1980’s, with a cavity wall construction, and is managed by the NHS as the client. The original building had a flat roof, but had a shallow pitched conversion applied over the concrete roof with metal roof sheeting.

Structherm Ltd were approached to give their expertise to a refurbishment, comprising of Structherm’s External Wall Insulation system combined with the Structherm RoofLine closure system, along with the unique Structherm ArtBrickTM solution.

Solution & Specification

New windows and doors were specified, along with Structherm’s External Wall Insulation with the ArtBrickTM finish. A new roof was planned, however the existing metal corrugated roof had numerous services penetrating through it such as roof lights and ventilation ducts, and the building had to remain in operation for the duration of the work. Hence it was decided that the existing roof sheeting should be retained, however there was insufficient overhang to provide protection to the new EWI system. Structherm therefore designed and detailed the RoofLine closure system where the new gutter and flashings provided more than adequate rainwater protection. This saved significant costs on the project as it allowed the building to be insulated and transformed without the need for the roof to be replaced.

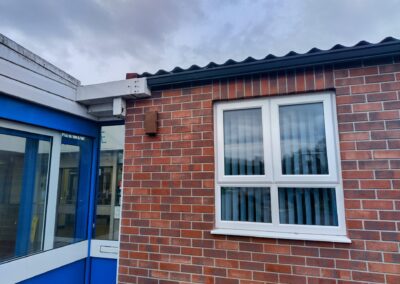

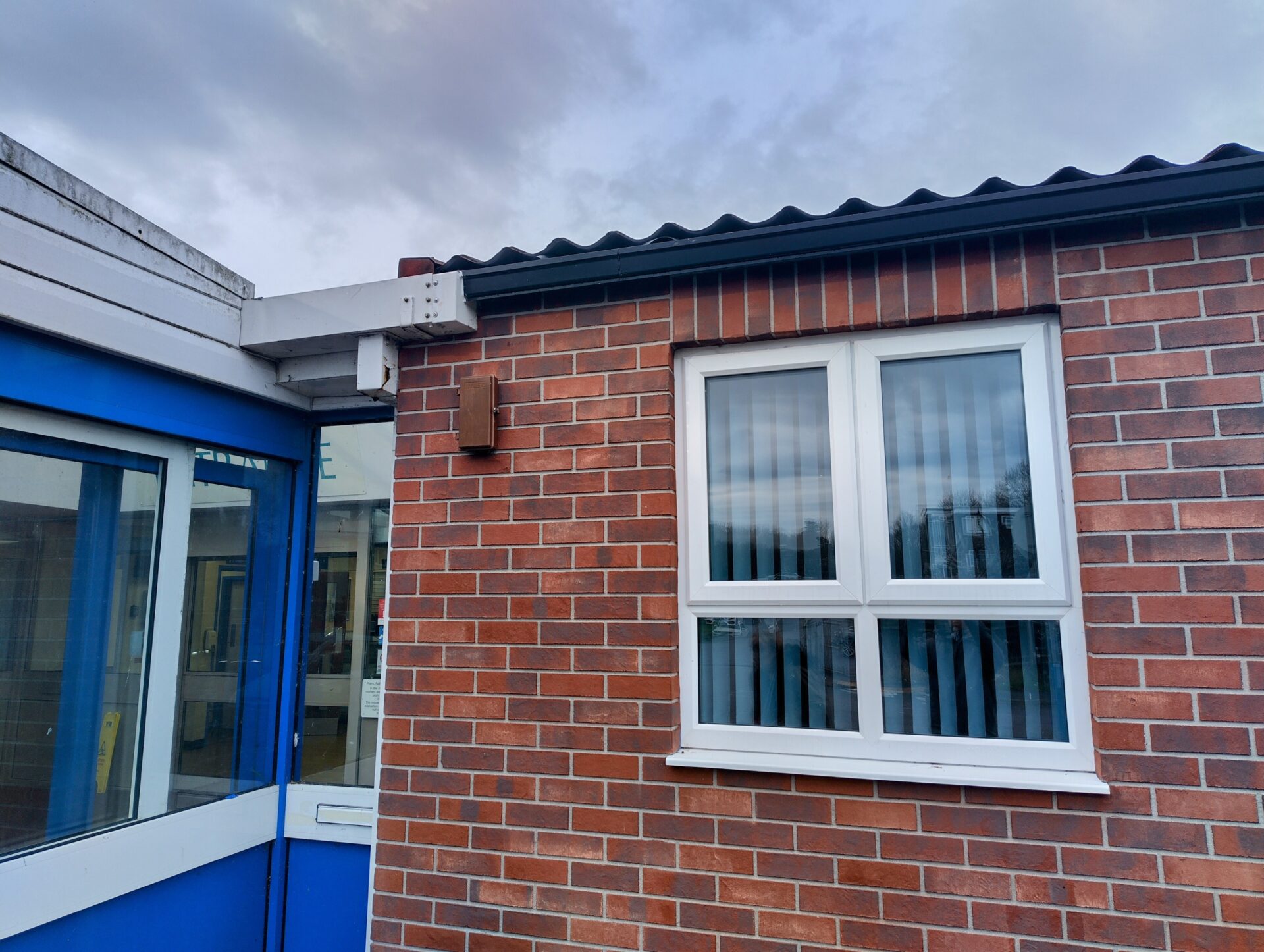

The RoofLine closure system is designed with a sloping bottom face to ensure the rainwater drains away from the face of the building and has a lower front edge. The high volume aluminium gutter is supported by a thermally broken fascia and has the outlet on the front face such that the rainwater pipes can drop cleanly in front of the EWI system. There is also a secondary membrane incorporated to provide additional protection against rainwater ingress should any leak occur.

Installation & Challenges

Co-ordination of detailing with the windows and door manufacturers ensuring the window and eaves details were practical and easy to construct.

The client required the windows and doors to be moved out beyond the face of the existing brickwork. As a result, a Triotherm Structural Thermal support system was incorporated in to the Structherm EWI system to enable the windows and doors to be fitted in this location and to minimise thermal losses around the reveals. Structherm’s ArtBrickTM finish was selected by the client to create a modern look and transform its appearance.

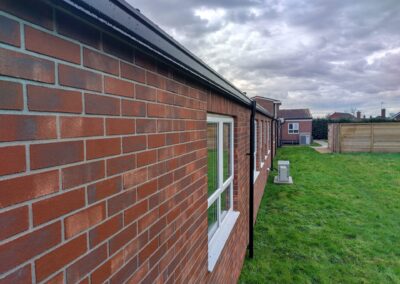

Bespoke RoofLine gutter and downpipe sections were fabricated to deal with any existing difficult areas without having to make any modifications to the roof, thus saving costs and time on the project.

The End Result

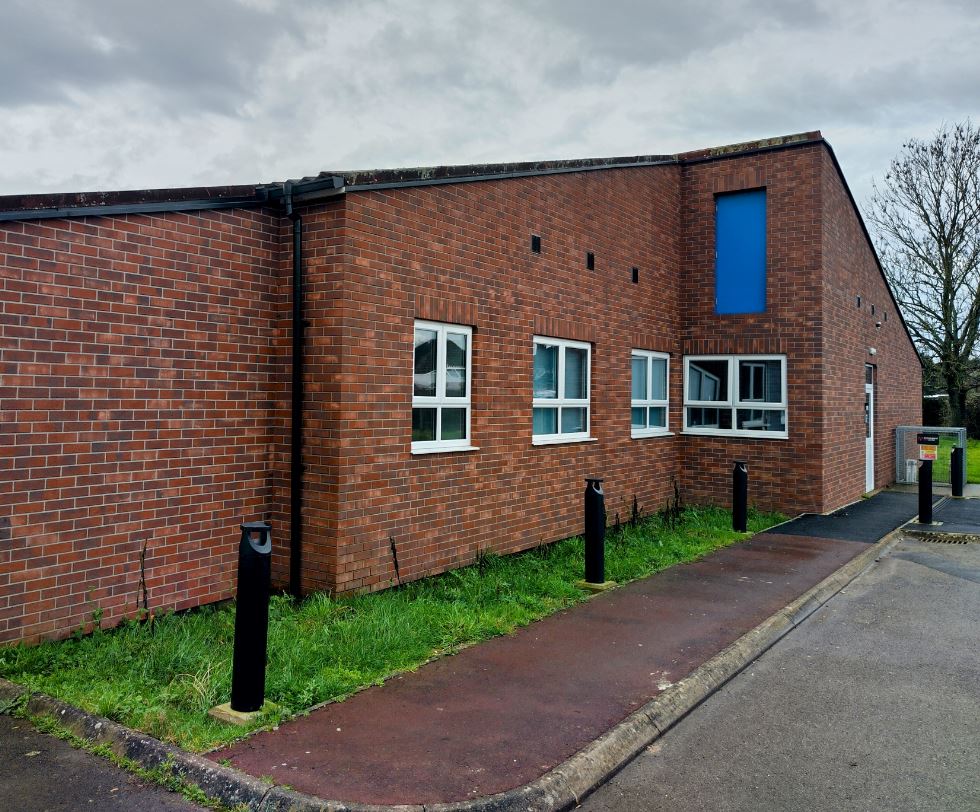

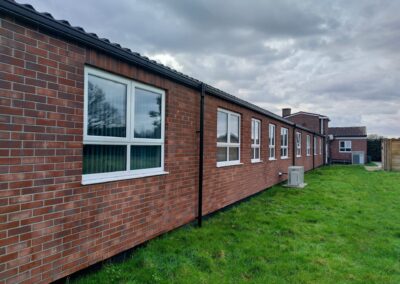

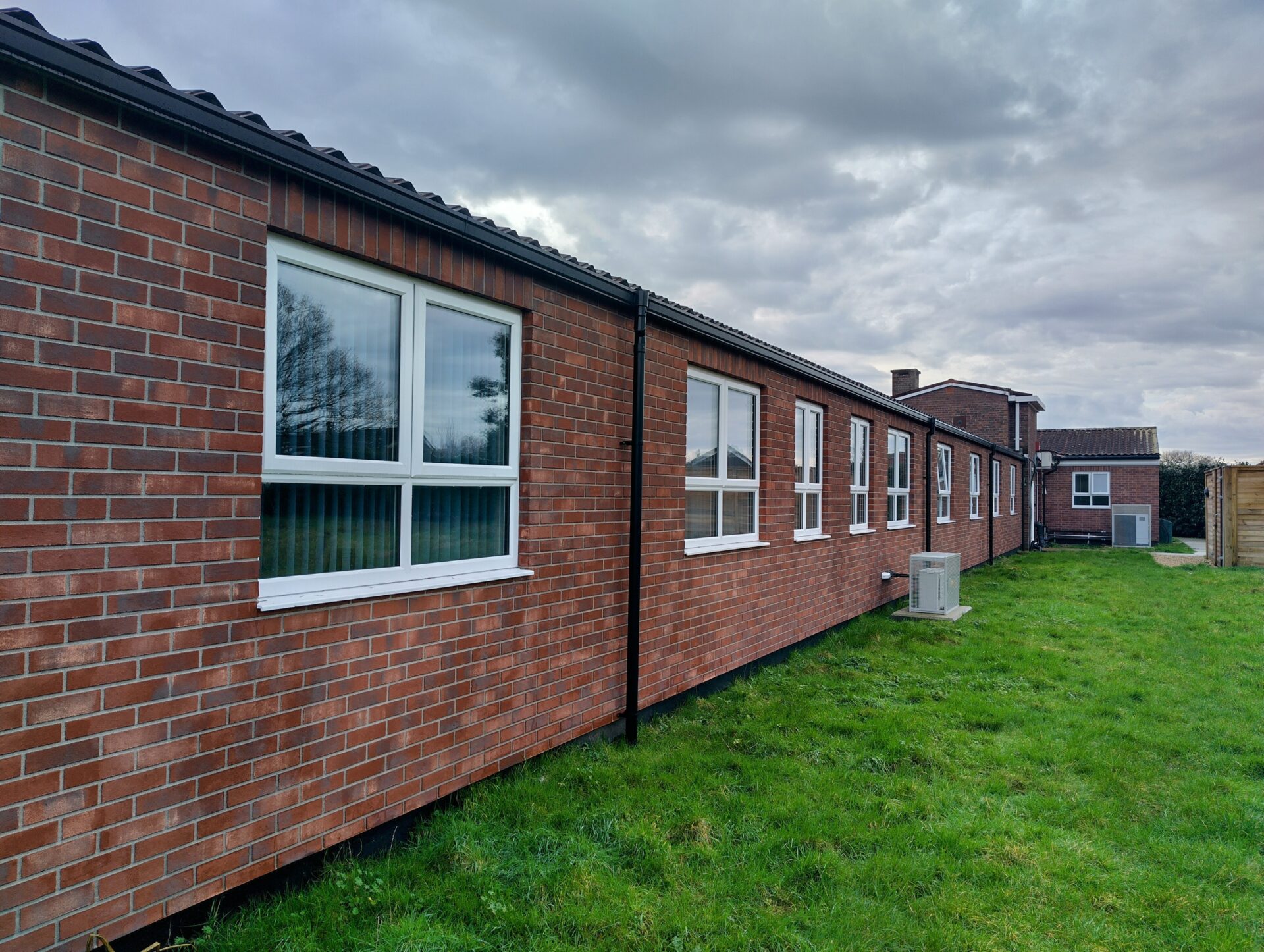

With the U-Value significantly reduced to 0.25 W/m2k, from 1.67 W/m2k previously, the building now benefits from a more comfortable temperature during the winter months, whilst also reducing energy costs. Structherm’s expertise has breathed new life into the health centre and elevated it into one of the more impressive buildings in the NHS estate. The use of Structherm’s ArtBrickTM has completely transformed its appearance and given the building an up to date and contemporary look.

The use of Structherm’s ArtBrickTM has completely transformed its appearance and given the building an up to date and contemporary look.

Spokesperson

Structherm Ltd
