INCA Case Study: Livingstone Academy, Bournemouth




Livingstone Academy, Bournemouth


Project Type: New Build

Building Type: High Rise, Non Residential

Architect: Noviun Architects

System Designer: Wetherby Building Systems

Installer: AT Jones & Son Ltd

System & Finish: Wetherby A1 System, 25mm Ragrail Cavity Spacer stone wool system

U-Value After: 0.3W/m²K

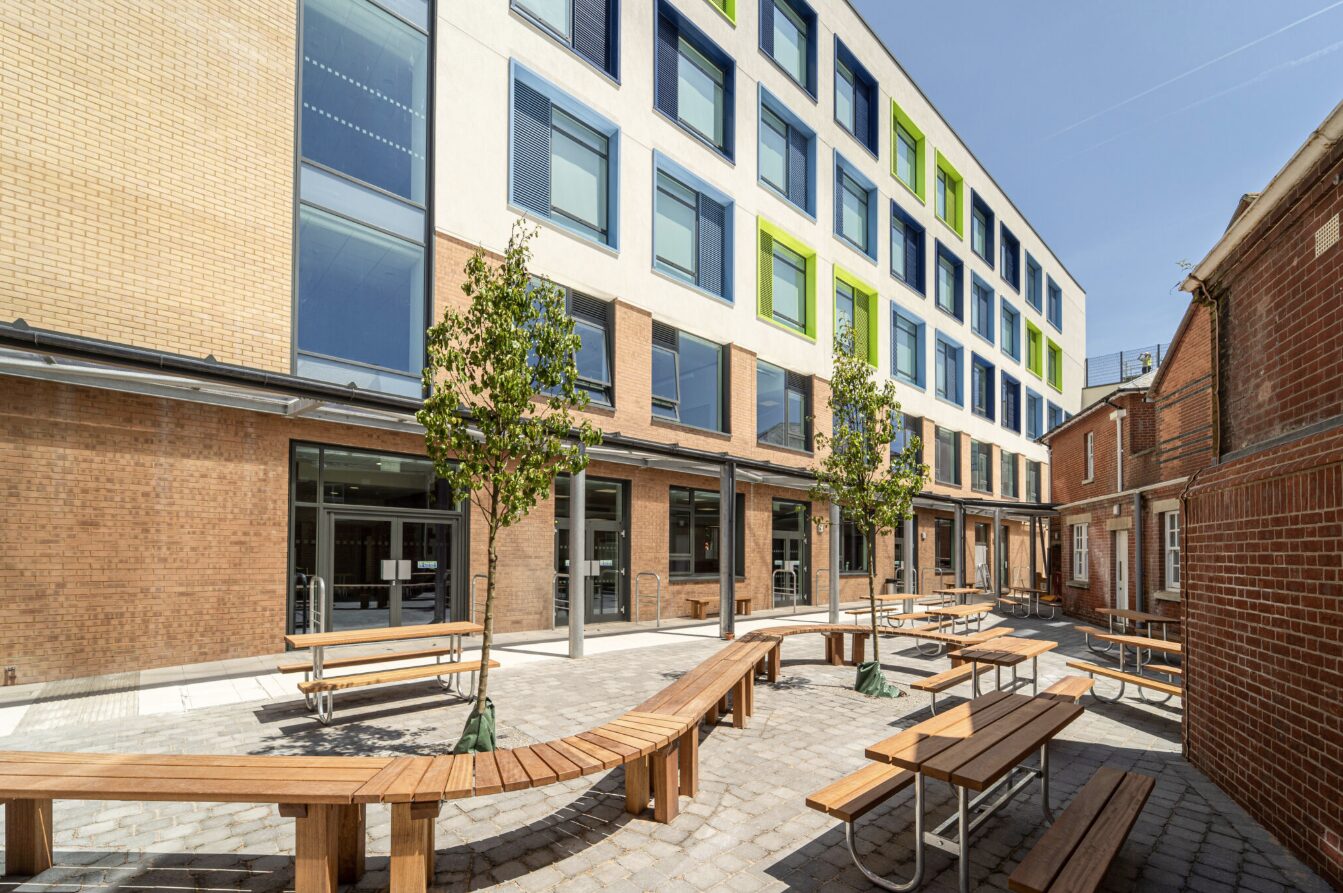

Livingstone Academy included the change of use of a 1920s Grade II listed former court. The project also included a new build section to create a new all through school located in the heart of Bournemouth. Wetherby Building Systems were selected as EWI system supplier and AT Jones & Son Ltd were subcontracted to undertake a full facades and internals package including EWI render, SFS, aluminum cladding, drylining and ceilings.

AT Jones & Son Ltd utilised a Wetherby A1 EWI system leaning on the experience and expertise of the Wetherby technical department and Eddie Eeles. The system contained 300mm Insulation in 2 x 150mm layers Wetherby stone wool insulation. This meant the starter tracks were quite bulky to install and reveals also tricky.

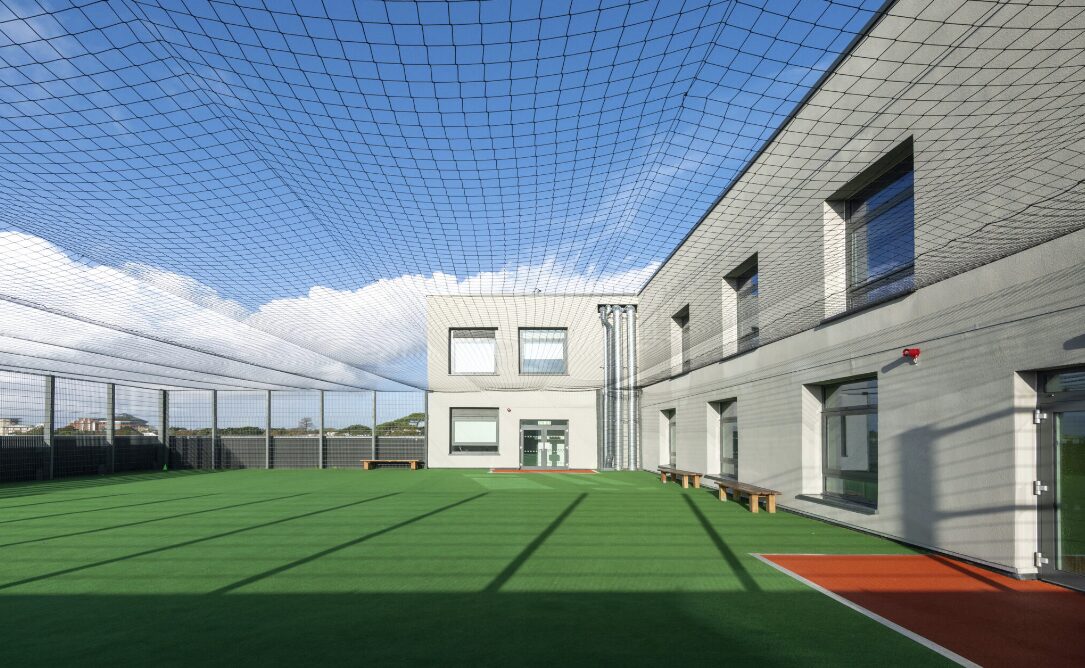

The job contained a number of tricky details around the rooftop located MUGA. The MUGA required heavy duty scrim coat to assist with impact resistance and a 2 part powder coated horizontal movement joint to match top coat colours. This 2 part movement joint was used across the project.

Due to program constraints the project started in October 2022 and was completed in February 2023 incurring the worst of the British weather, with lots of high winds and rainy periods.

Livingstone Academy included the change of use of a 1920s Grade II listed former court.

Adam Lee

Director, A T Jones
